Incineration Process

Municipal,Industrial sludge (MS-IS) disposal faces significant environmental problems related to air emissions, threat to public health and contamination of soil and water resources, requiring therefore an appropriate treatment and careful management.

While world’s sludge production is on a relentless growth curve, environmental quality requirements for sludge are becoming increasingly stringent, disposal outlets are decreasing and economic pressures require low-cost solutions.

Disposing sewage sludge to landfills is considered a beneficial use only when such disposal includes methane recovery for energy production. However, use of sludge on land in the EU will not change dramatically in the future due to legislative restrictions. The proportion of recycled sludge to agriculture will remain almost constant despite to the growth in MS generation.
So that the incineration of the MS and recover the energy that generated in the incinerator become the most important and feasible solution in Sludge Management.

The ‘‘sludge-to-energy’’ approach is feasible with substantial benefits similar of those that any renewable energy source presents: decreasing the energy dependency of the WWTP and greenhouse gas emissions.

Fluidization is a method of mixing fuel and air in a specific proportion, for obtaining combustion. A fluidized bed may be defined as the bed of solid particles behaving as a fluid. It operates on the principal that when an evenly distributed air is passed upward through a finely divided bed of solid particles at low velocity, the particles remain undisturbed, but if the velocity of air flow is steadily increased, a stage is reached when the individual particles are suspended in the air stream. If the air velocity is further increased, the bed becomes highly turbulent and rapid mixing of particles occur which appear like formation of bubbles in a boiling liquid and the process of combustion as a result is known as fluidized bed combustion.

In fluidized bed combustion, rapid mixing ensures uniformity of temperature. The main advantage of fluidized bed combustion system is that municipal waste, sewage plant sludge, biomass, agricultural waste and other high moisture fuels can be used for heat generation.

A simple flow diagram of the structure is as above. Sludge will be stocked in the Bunker and pumped to the FBR. Sludge will burn in 2 stages and reaches to the boiler. Boiler generates pressurized saturated steam. Stack gas will be cleaned from ashes and solid particles in the filter. An inverter driven fan regulates the flow. Stack will be scrubbed and chemically treated and exhaust from the chimney. On the chimney emission control and monitoring will take place and records the emission parameters.

Fluidized Bed Incinerating System Description

A typical flow and the description of a Fluidized Bed Incinerating System (FBIS) and the integrated system can be described with a flow diagram as follows.
Sludge from the decanter area or from the drier section will be convey to the inlet Bunker of the Fluidized Bed incinerator.
Bunker capacity may be considered as a buffer/recovery in case of interruption of the sludge and the Bunker area needs to be close to the Fluidized Bed Reactor (FBR).
The pumping or conveying method will be selected regarding to the dryness factor of the sludge. These units will have redundancy and quick accessibility.

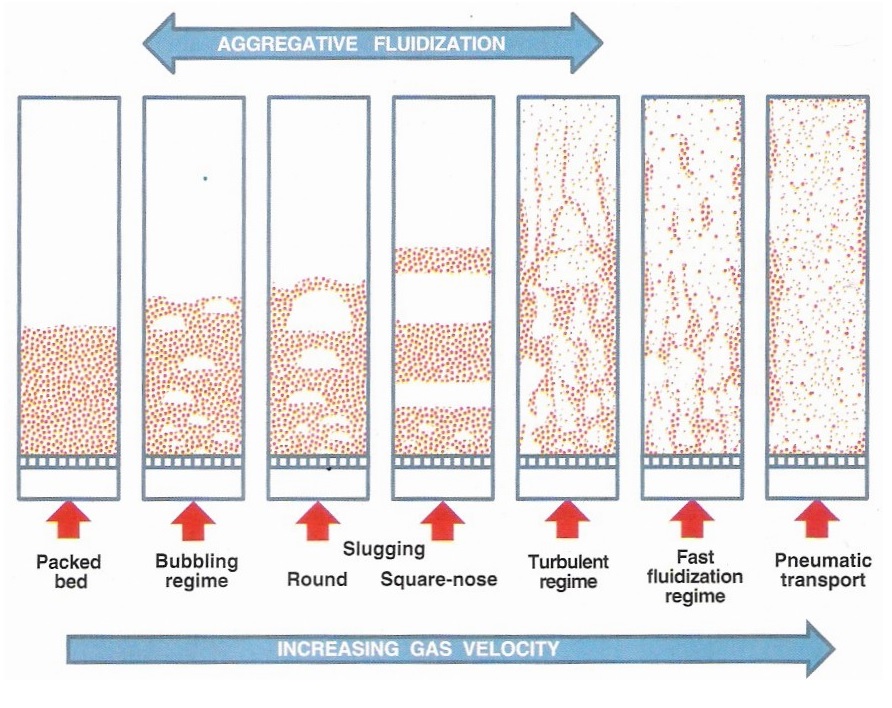

The principle of fluidization is the process where a granular material in a solid state is turned into a fluid-like state by passing a fluid (liquid or gas) through it. As the fluid passes through the granular material, drag forces will overcome the force of gravity and the material will expand as the particles are moved away from each other. Eventually, as the fluid and material spread farther apart, the velocity slows and the force of gravity overcomes the drag forces, causing the particles to fall back down until they begin to fluidize again. Given sufficient fluid velocity, the particles will remain suspended or fluidized, and will exhibit fluidic behavior.

The fluidized bed reactor contains calibrated sand.
The reactor is heated up to a homogeneous temperature in the range of 600°C –650°C.
The fluidization phase starts seven in lower temperatures and the bed starts bulbing and reacts as a fluid.

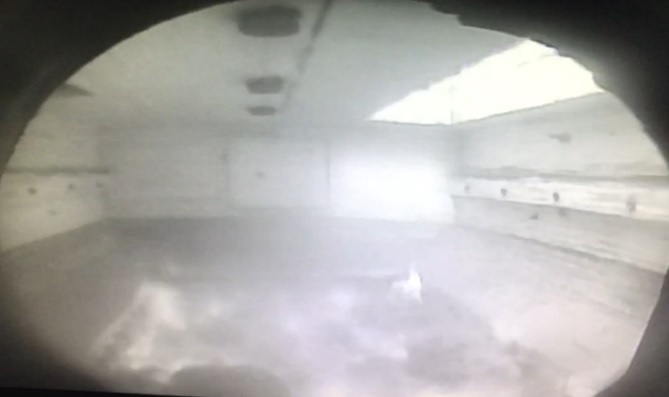

Bulbing Phase in Reactor

In the bulbing phase, whenever it starts to feed, sludge floats and burns in the reactor both the light and the heavy organics immediately starts to oxidized.

The combustion chamber temperature reaches up to 850-900°C. Then the stack gas will reach to second combustion chamber that will have an additional combustion burner and has the capability to reach the stack gas temperature up to 1100°C.

So, the possible dioxin and furan compositions in the stack gas will decompose during 2 seconds. This property is compatible with the EU norms and environmental regulations.

The stack gas will enter to steam boiler. In the Steam boiler the steam will be generated to use in the Turbine to generate electricity.

The stack gas then will enter to the filter. Filter would be alkaline earth silicate element filter tı ensure a high quality filtering the exhaust temperature over 250°C.

The ash particles would be catch and collected in an ash extractor just below the filter unit. Incineration ash residues can be used to produce road construction materials or concrete aggregates as well.

The exhaust fan is the most important component of the system that will regulate the flow through the system with a frequency inverter.

A scrubber will take place in the system to eliminate the hazardous chemicals in the stack and to avoid the odor as well.

There will be a chemical dosing system in the integration.

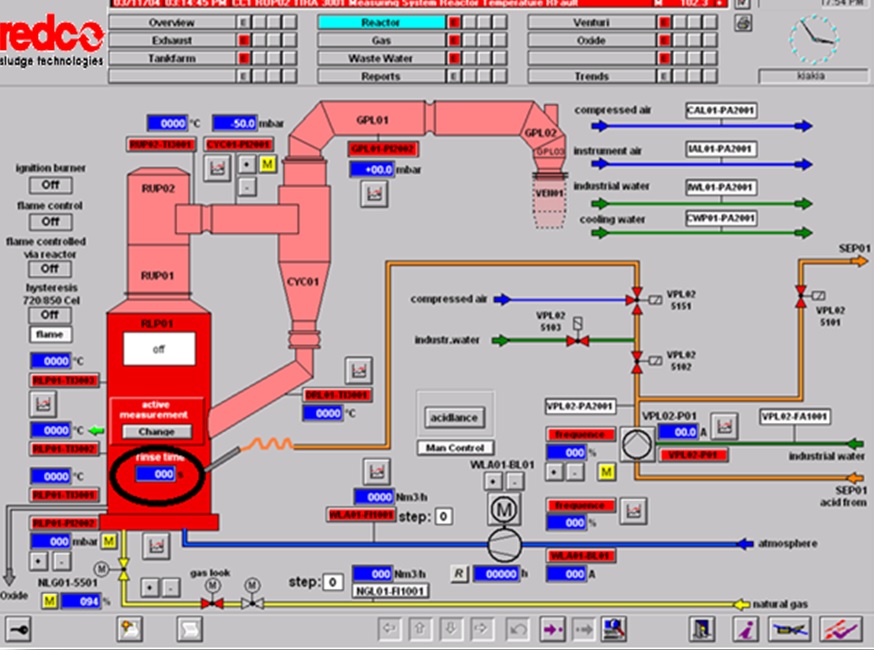

SCADA System

Stack gas will exhaust through a chimney. On the chimney the continuous emission controlling and monitoring system will take place. With this system Management will follow and record all data during the operation. System also warns the operators via SCADA system.

All those operations above will be controlled via Operator panels and Scada system.

With this SCADA panels operator can operate all the components. Automatic and manual modes are available in the system.

References:
* Yeşil Çevre Atık İşletme Koop/Bursa Turkey - 80 tons/day drying and incinerating
* Temiz Çevre Atık Yakma Tesisi  Antalya/Turkey - 90 tons/day drying and incinerating
* Bursa OSB Çamur Yakma Tesisi Bursa /Turkey-  60 tons/day incinerating
